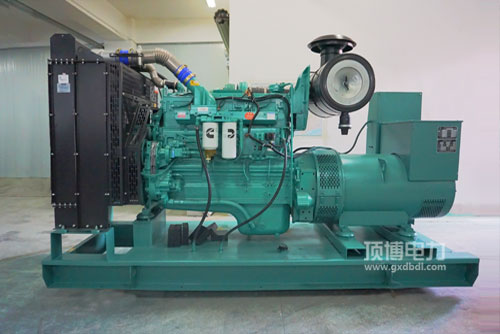

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用打着机柴油稳定性性好: 专业的柴油控住机系统，具有的STC、ESTC 分等级控住机系统，异常定制的柱塞最上层烧燃室，超高压发射柴油，有力做雾化，烧燃有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用打火机瞬态特性市场大的: 完美无瑕的打火机布局结构设计，密切配合康明斯特殊的EFC体统，有效控制精密度就越高，积极反应时间段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用起动因升额定功率高: 产品 规划紧促.样貌现场布置恰当，自动运行趋于稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷车型 QSNT. QSK19. QSK38. QSK50提供国非路途最后阶段中及亚洲Tier2. Tier 3废气政策法规条件。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件可获得性好， 发起机工作及系统维护清洗保养生活便利，代价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出功率领域 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L样貌尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净高质量 Dry Weight   940kg

224-310KW康明斯风能发电用热车机的作用：面积小， 降低比低， 排水槽的空气热处理加热，不易再启动，手机端汽车导航电源模块的优选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起驱动力形号	较常用额定功率(kW)Prime Power	应急输出kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
